Self-inker /Self-inker (with counter)
Features
- With replaceable rubber stamp
- Built-in ink pad enables continuous stamping
- Easy to change printing text by replacing rubber stamp
- Easy matching with your demand with 15 different sizes
- Easy to print, clear and vivid by the equable force transmit design

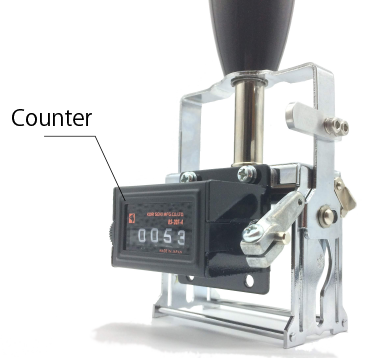

With counter
- The sequential number of stamps can be check with a counter
- No need to enter the number of stamps separately
- Grasp printing omission by checking the number of stamps
- There is a knob to reset the counter
Main uses
Any stamp marking in the manufacturing industry
Accessory

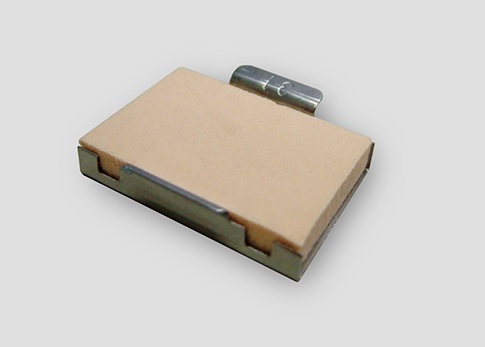

Replacement pad
Size list
| Model number | Printing surface size(mm) | Number of cushion sheet grooves | Weight(g) | With counter |
|---|---|---|---|---|
| SI-31 | 17×33 | 5 | 170 | |
| SI-32 | 17×48 | 5 | 195 | |
| SI-33 | 17×61 | 5 | 210 | ? |
| SI-34 | 17×74 | 5 | 230 | ? |
| SI-41 | 28×55 | 8 | 280 | ? |
| SI-42 | 28×64 | 8 | 300 | ? |
| SI-43 | 28×74 | 8 | 325 | ? |
| SI-44 | 28×99 | 8 | 375 | ? |
| SI-51 | 35×55 | 10 | 325 | ? |
| SI-52 | 35×64 | 10 | 350 | ? |
| SI-53 | 35×74 | 10 | 375 | ? |
| SI-54 | 35×99 | 10 | 425 | ? |
| SI-92 | 49×55 | 14 | 500 | ? |
| SI-93 | 49×74 | 14 | 600 | ? |
| SI-94 | 49×99 | 14 | 700 | ? |
| Weight: 110g increased with the counter | ||||

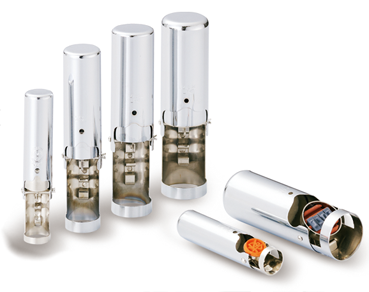

Auto stamp/Auto stamp “Kiwami”
Features
- Ideal for symbol printing and identification inspection
- Can stamp on narrow printing surface on small items
- Include cushion sheet suitable with replaceable rubber stamp.
??(The replaceable rubber stamp is available in groove type only) - "Kiwami" has high print quality and can use quick-drying ink
Main uses
Identification symbol marking, inspection, passed seal, etc. in the manufacturing process
Accessory

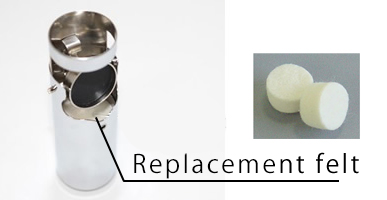

Replacement felt (for automatic marking)
Original rubber stamp
More than above can be created
Size list
| Model No. | Printing surface size（mm） | Number of cushion sheet grooves※2 | Lid | Weight（g） |
|---|---|---|---|---|
| Circle No.3※1 | Φ9 | - | Included | 25 |
| Circle No.4 | Φ12 | 3 grooves | Included | 40 |
| Circle No.5 | Φ14 | 3 grooves | Included | 50 |
| Circle No.6 | Φ17 | 4 grooves | Included | 60 |
|
※1. Since Circle No. 3 circle is small, the replacement rubber stamp cannot be used. Direct pasting only (a rubber stamp is pasted directly on the stamp surface). ※2. Cushion sheet groove counted for cushion sheet specifications |
 |
|||

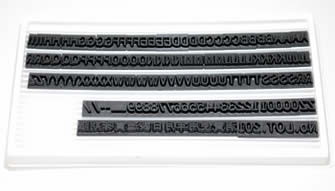

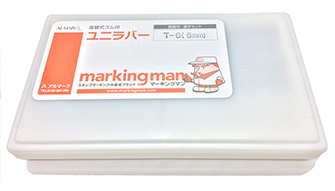

Uni-rubber
Feature 1
- Set contents according to domestic requirement in Japanese (with main kanji)
- Possible to cope with some unevenness for deep carving
Feature 2
| Rubber material | Neoprene rubber |  |
|---|---|---|
| Manufacturing | Japan | |
| Font | Alphanumeric: News Gothic, Kanji: Thick Gothic | |
| Combination set | Same number of characters, specific kanji available (see set contents) |
|
| Recommended equipment | Self-inker | |
| Custom rubber stamp manufacturing | Possible |

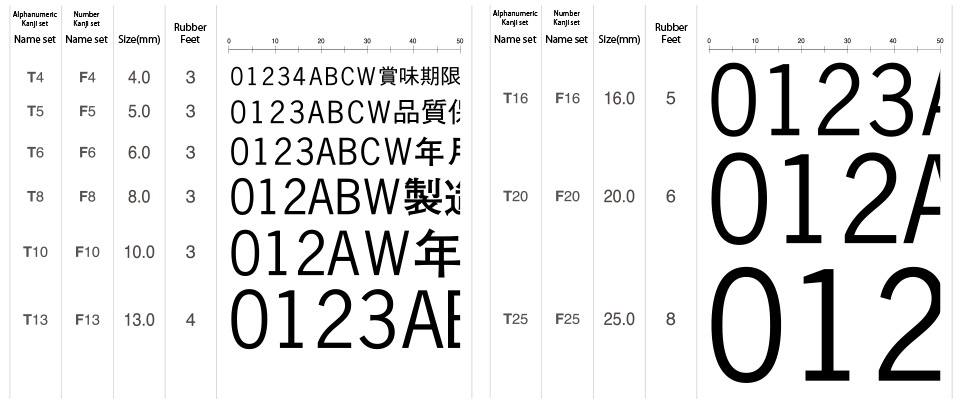

Uni rubber lists

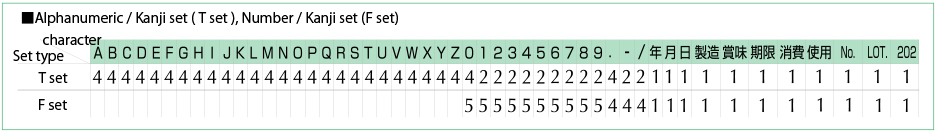

Uni rubber set contents (mentioned number is the number to be set)

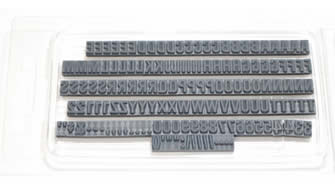

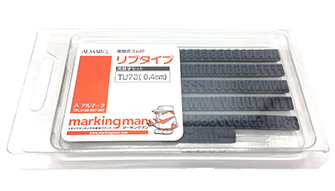

Rib-type
Feature 1
- Inlcude 14 sizes and 2 fonts
- TRADE Gothic has fine lines, ideal for small characters
- ALPIN Gothic is a narrow font and can print multiple information in a small space
Feature 2
| Rubber material | Natural rubber |  |
|---|---|---|
| Carving depth | shallow | |
| Manufacturing | USA | |
| Font | (Alphanumeric) TRADE Gothic, ALPIN Gothic | |
| Combination set | English-American style, no kanji (see set contents) | |
| Recommended equipment | Self-inker, automatic marking, “Kiwami” | |
| Custom rubber stamp manufacturing | Possible |

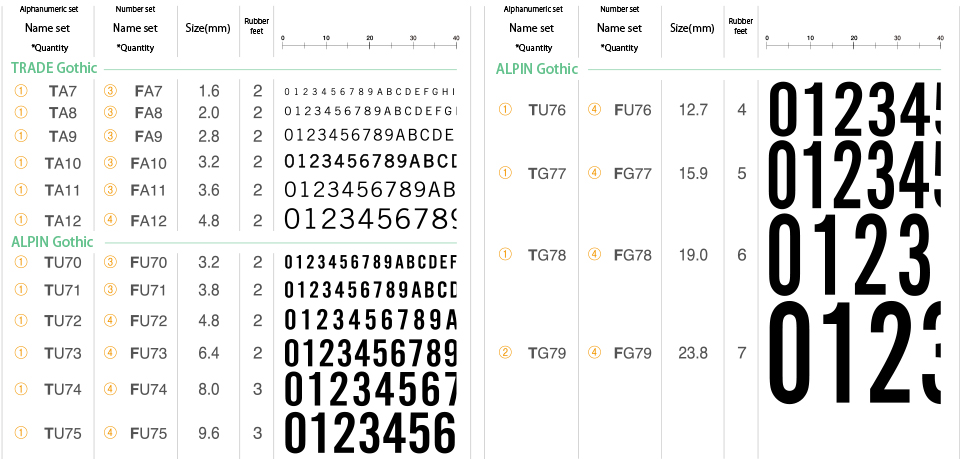

Rib Type lists

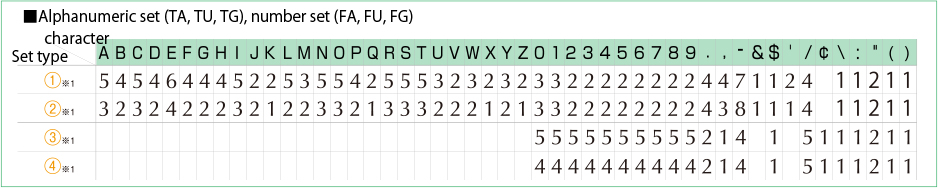

Rib-type set contents (mentioned number is the number to be set)
For inquiries and estimates regarding stampers, rubber stamps, etc., please contact the following.
